Geometric Co-training
Co-training with geometric generation improves spatial skills. Which task helps depends on the skill being tested.
Spatial understanding+Geometric generation
GEOMETRIC UNDERSTANDING & GENERATION
Learning and reasoning with geometry:
How Generation Helps Spatial Understanding?
1 The University of Hong Kong2 Shanghai Jiao Tong University3 ByteDance Seed
† Corresponding authors
GeoUGUnified understanding & generation
IMAGE + INSTRUCTIONOne scene. Multiple geometric tasks.
INPUT · THIRD-PERSON IMAGE
Generate the pianist’s view
OUTPUT · GENERATED FIRST-PERSON VIEW
GeoUG task configurations · Two-view fusion is illustrative, with estimated ego intrinsics and residual misalignment.
Generate geometry. Improve understanding. Reason selectively.Explore the research
01 / THE IDEA
Research Overview
Two ways to use generation: geometric supervision during training, and geometric evidence during inference.
B DURING INFERENCE
Geometry-assisted Inference
Draft an answer. Generate depth when it is useful. Measure, then confirm or revise.
Draft→Decide→Measure
02 / MODEL OVERVIEW → MMDC
Model Overview
GeoUG combines spatial understanding and geometric generation in one multimodal framework. The instruction specifies what to answer or generate.
INPUTImage + task instruction
Image + task instructionAsk a spatial question,
request depth, or specify a viewpoint.
UNIFIED MODELGeoUG
Understanding
+
Generation
TASK-CONDITIONED OUTPUT
Text
answer
answer
Spatial understanding
Answer questions about the scene.
View generation
New camera view or first-person view.

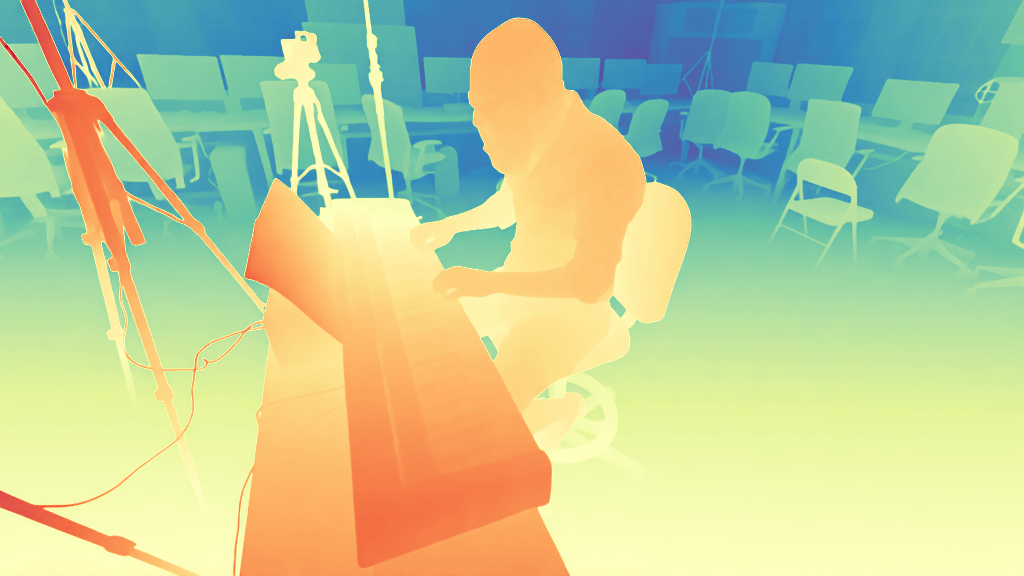

Metric-depth generation
Depth in metres, enabled by MMDC.
FOCUS ON THE DEPTH BRANCH
How can an image generator produce depth in metres?
Multi-scale Metric Depth Codec
The Multi-scale Metric Depth Codec fits metric depth into the three channels of an RGB VAE—with no learned codec parameters and no architecture changes.
STATIC OVERVIEW / DEPTH ENCODING
One depth map → three scales → one image.
01 · METRIC DEPTHDepth in metres
Depth in metres02 · THREE FIXED SCALES
at three different pivots
Channel 1 c₁ = 2 mChannel 2 c₂ = 8 mChannel 3 c₃ = 32 m
Apply the same transformat three different pivots
03 · MMDC IMAGE
Stack the three channels
Stack the three channels04 · VISUAL LATENT
for flow matching
Frozen
VAE encoder
Training targetVAE encoder
for flow matching
IN MOTION
The complete codec, step by step.
First encode depth. Then watch generation and decoding as one continuous animation.
THE MATH & THE EVIDENCE
Depth Encoding and Reconstruction
ENCODE
DECODE
FUSE
Fixed pivots: c₁ = 2 m, c₂ = 8 m, c₃ = 32 m. Each channel covers a different depth scale; fusion favors channels away from saturation.
DEPTH ESTIMATION
Experiment Results
Comparison with other models
| Model | NYU-v2 | KITTI | ETH3D | Sintel | DIODE |
|---|---|---|---|---|---|
| ZoeDepth | 4.76 / 97.30 | 5.59 / 95.10 | 7.27 / 94.20 | 21.80 / 69.20 | 7.80 / 90.90 |
| Depth Anything V2 | 4.16 / 97.90 | 6.77 / 94.30 | 4.63 / 97.20 | 17.10 / 76.60 | 5.41 / 94.60 |
| Metric3D V2 | 3.94 / 97.60 | 3.50 / 98.40 | 3.24 / 99.00 | 26.60 / 71.70 | 2.75 / 98.70 |
| UniDepth V2 | 2.96 / 98.60 | 3.85 / 98.10 | 2.95 / 98.50 | 13.30 / 83.20 | 4.05 / 96.50 |
| Depth Pro | 3.67 / 98.20 | 5.12 / 96.80 | 4.97 / 96.40 | 15.80 / 80.10 | 4.66 / 95.60 |
| MoGe-V2 | 2.89 / 98.60 | 3.75 / 98.10 | 2.80 / 99.10 | 13.30 / 82.50 | 3.14 / 97.40 |
| Marigold-v1.1 | 5.50 / 96.40 | 10.50 / 90.20 | 6.90 / 95.70 | 29.80 / 78.20 | — / — |
| Lotus | 5.40 / 96.80 | 8.50 / 92.20 | 5.90 / 97.00 | — / — | 9.80 / 92.40 |
| GeoUG-Depth (ours) | 3.32 / 98.46 | 4.84 / 97.27 | 3.75 / 97.85 | 14.72 / 79.65 | 4.50 / 96.22 |
GeoUG-Depth uses MMDC with expanded training data. “—” indicates an unreported result. Affine-aligned scores evaluate depth shape, not absolute metric-scale accuracy.
MMDC ablation
| Encoding | Average | NYU-v2 | KITTI | ETH3D | Sintel | DIODE |
|---|---|---|---|---|---|---|
| Single-scale (c = 5 m) | 7.47 / 92.20 | 3.35 / 98.40 | 6.61 / 95.22 | 4.76 / 96.66 | 16.68 / 76.77 | 5.96 / 93.96 |
| MMDC (2, 8, 32 m) | 7.24 / 92.57 | 3.35 / 98.38 | 6.51 / 95.34 | 4.62 / 96.99 | 16.31 / 77.23 | 5.40 / 94.88 |
| MMDC + data scaling | 6.23 / 93.89 | 3.32 / 98.46 | 4.84 / 97.27 | 3.75 / 97.85 | 14.72 / 79.65 | 4.50 / 96.22 |
Average is the unweighted mean across five datasets. The final row adds training data and is the GeoUG-Depth model compared above.
03 / GEOMETRIC GENERATION
Geometric Generation
From noise to depth, camera-controlled views, and first-person perspectives. These videos show actual sampling runs from the paper’s checkpoints.
01
Generate metric depth
A single photograph becomes a metric depth map. Watch the sampling process.
02
Move the camera
The generated view follows a camera-motion instruction. Ground truth is shown alongside.
03
Take another perspective
Generate a first-person view from a third-person image and a description of the person.
Qualitative Comparisons
Six comparisons, shown one complete example at a time. View-generation examples include the original BAGEL baseline.

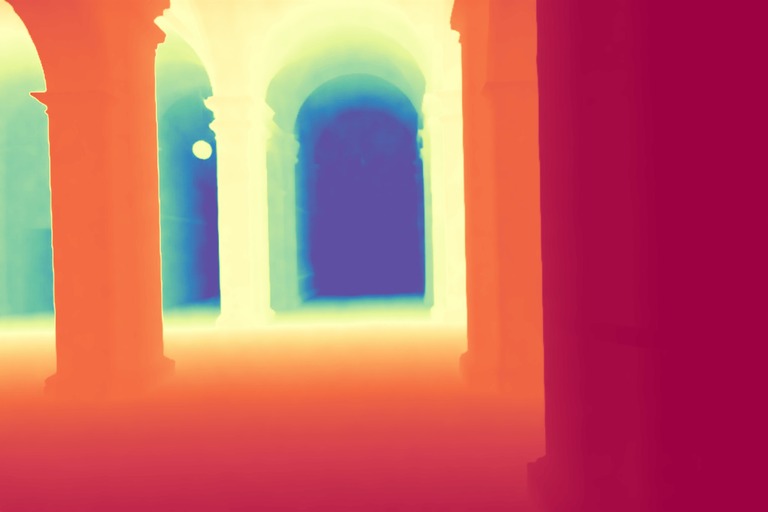

Depth · Arches

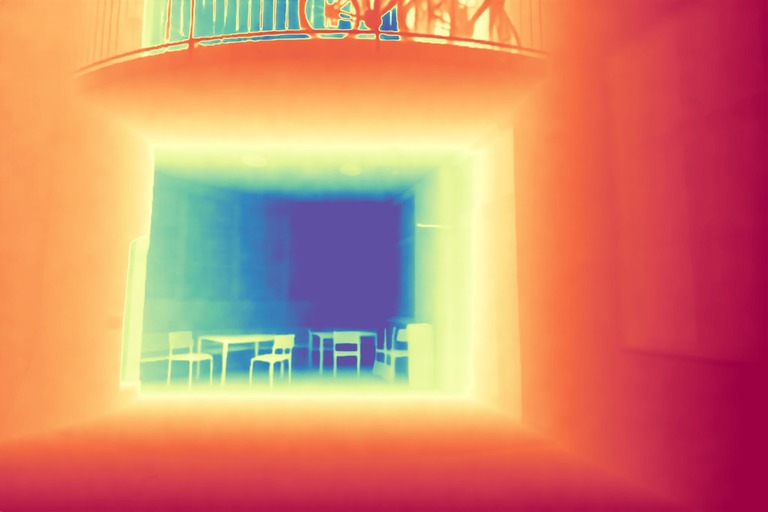

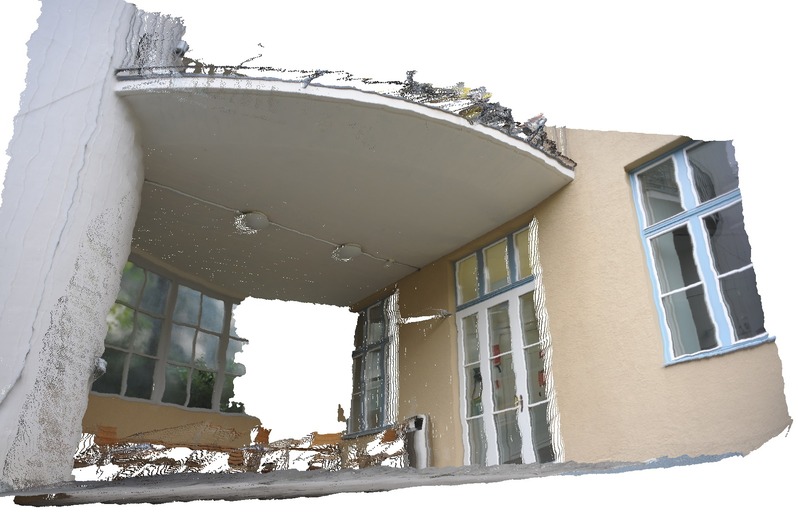

Depth · Terrace
Multi-view · Move right and rotate
Multi-view · Move backward
Exo-to-ego · Basketball
Exo-to-ego · Soccer
01 / 06Advances every 2 seconds · click a comparison to pause

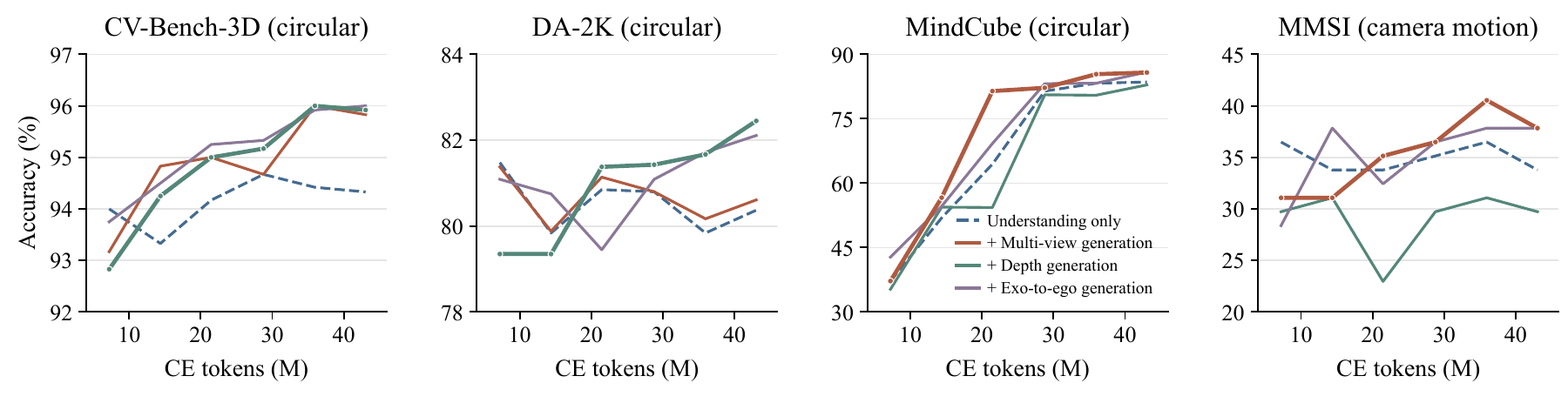

Geometric Co-training Results
Geometric co-training improves spatial understanding, with gains that depend on the generation task and benchmark.
At the final checkpoints, all three co-training tasks improve CV-Bench-3D-Visual by 1.50–1.67 percentage points. Depth generation gives the largest gain on DA-2K-Visual (+2.08 points); multi-view and exo-to-ego generation improve MindCube by 2.21 and 2.31 points, respectively.
Comparisons are aligned by understanding CE tokens. See the paper for model configurations and evaluation protocols.
04 / ADAPTIVE INTERLEAVED REASONING
Adaptive Interleaved Reasoning
GeoUG first drafts an answer, then decides whether generated geometry is worth using to verify it.
01
Why adaptive interleaved reasoning?
Generation helps on hard questions; easy questions can often be answered directly.
When two depths or distances are close, generated geometry provides useful evidence. With a large gap, direct answering is already strong and extra generation adds little.
THEREFORELearn when to generate.
Use geometric evidence where it helps, and skip it where it is unnecessary.
02
Draft first to learn when to generate
The draft provides a discriminative context for learning the adaptive generation policy.
First attempt the question. Then learn whether to keep that answer or verify it with generated geometry.
INPUTImage + question
DRAFTTentative answer
LEARNED POLICYDoes this answer need geometry?
↳ Skip generationKeep draft → Final answer
↳ Generate evidenceDepth → Measure → Verify or revise
The policy conditions on the image, question, and draft—not the unavailable ground-truth difficulty.
More selective generation
At a 50% generation budget, the draft-conditioned setting retains more of the accuracy gain from always generating.
55%Decide before answering
86%Decide after a draft
How it learns: supervised fine-tuning initializes the draft-and-verify format; reinforcement learning rewards correct answers while charging for generation. Decision-specific credit compares generation with keeping the draft.
Recorded reasoning example
Which is closer to the pianist’s head: the blue light or the folding chair? Watch the draft, depth generation, measurement, and revision.
Adaptive interleaved reasoning starts with a draft, then selectively generates geometric evidence to verify or revise the answer.
05 / EXPERIMENT RESULTS
Experiment Results
GeoUG skips generation on 27.6–49.7% of questions across these benchmarks. Circular accuracy requires both option orders to be correct.
Accuracy and generation, across all three benchmarks.
Circular accuracyGeneration rate
GeoUG: RL policy with λ = 0.1. Always-generating is slightly more accurate on 3DCueBench and DA-2K; GeoUG uses fewer generation calls.
Full model comparison
| Model | CV-Bench-3D | 3DCueBench | DA-2K | Average |
|---|---|---|---|---|
| BAGEL-7B-MoT | 70.4 | 61.6 | 55.1 | 62.4 |
| Qwen2.5-VL-7B | 70.8 | 48.6 | 45.3 | 54.9 |
| Qwen3-VL-8B | 87.1 | 66.8 | 44.6 | 66.2 |
| InternVL3.5-8B | 78.9 | 57.6 | 31.6 | 56.0 |
| SenseNova-SI-1.4-8B | 89.3 | 72.1 | 63.9 | 75.1 |
| SenseNova-SI-1.5-8B | 87.4 | 71.5 | 61.1 | 73.3 |
| VST-7B-SFT | 93.2 | 77.9 | 63.5 | 78.2 |
| DA3 (depth readout) | 95.3 | 90.9 | 92.1 | 92.8 |
| GeoUG (Ours) | 97.9 | 90.8 | 94.2 | 94.3 |
DA3 uses predicted metric depth with the same measurement procedure, without a VLM. Average is the mean of the three overall scores. Consult the paper for referring formats and full setup.
06 / QUALITATIVE RESULTS
Interleaved Reasoning Examples
Generated geometry can correct a wrong draft, but selective generation also avoids unnecessary computation—and erroneous measurements can still overturn a correct answer.
Abridged traces from the paper and appendix. Generated depth and top-view point clouds come from the policy’s outputs. Generation probabilities are reported for both option orders; tool measurements are predictions, not ground-truth distances.

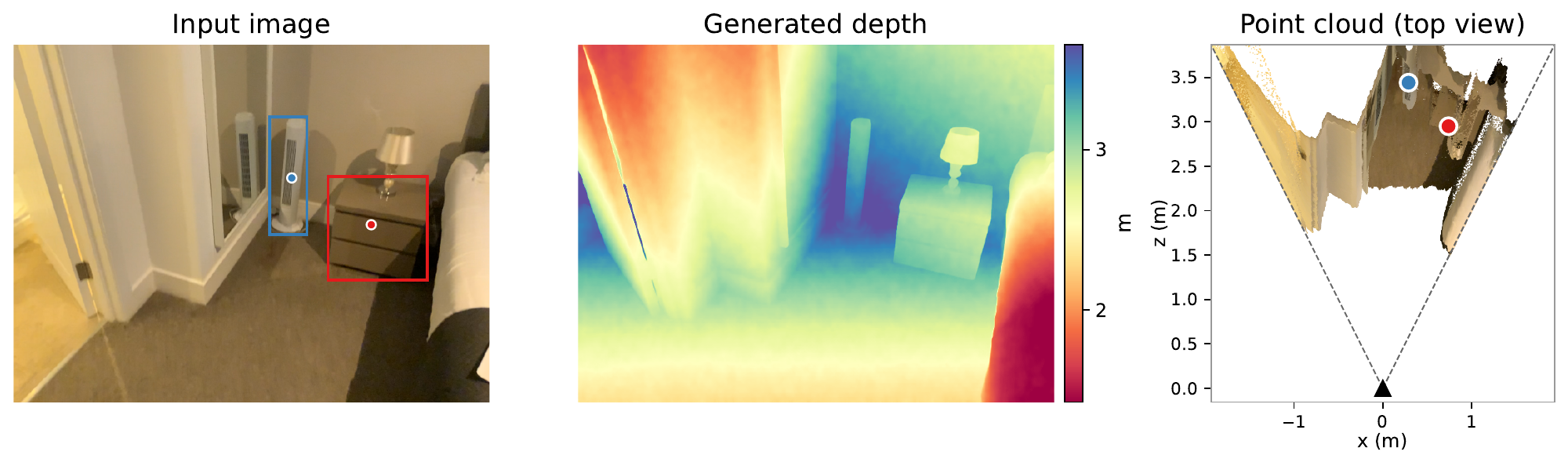

3DCueBench · Depth
Wrong draft → Correct answerWhich is closer to the camera: the nightstand or the tower fan?
DRAFTTower fan
GENERATE + MEASURE
Nightstand: 2.95 m · tower fan: 3.44 m
FINAL ANSWERNightstand ✓
Generation probability: 0.93 / 0.96. Final answers are correct under both option orders.

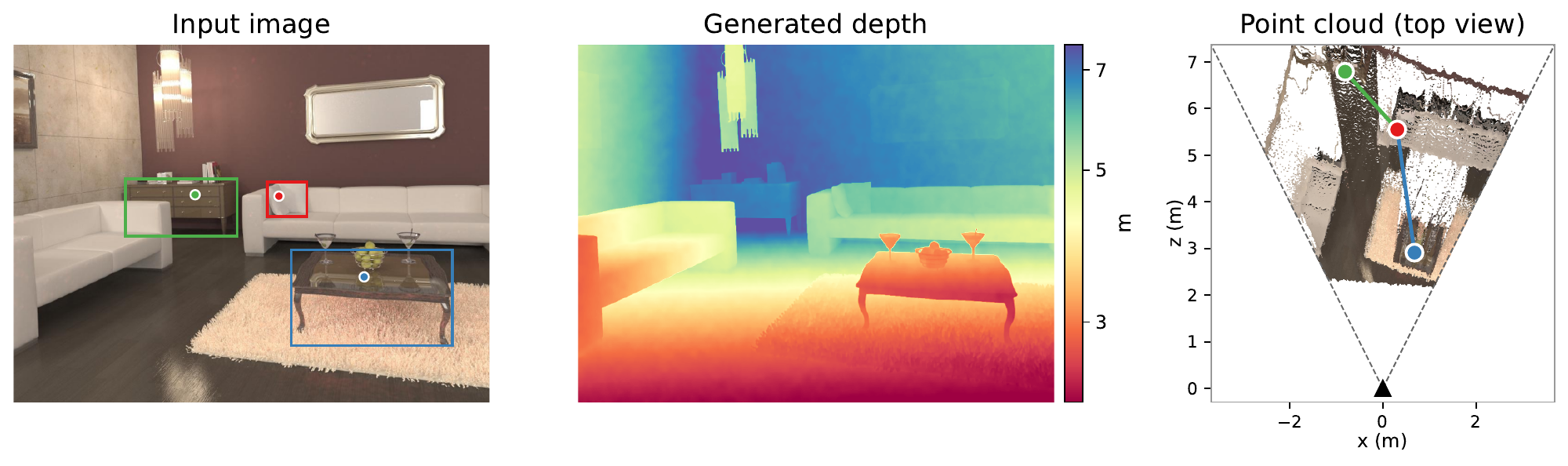

3DCueBench · Distance
Wrong draft → Correct answerWhich is closer to the white cushion: the glass coffee table or the wooden sideboard?
DRAFTGlass coffee table
GENERATE + MEASURE
Cushion → coffee table: 2.74 m · cushion → sideboard: 1.68 m
FINAL ANSWERWooden sideboard ✓
Generation probability: 0.99 / 0.99. Final answers are correct under both option orders.

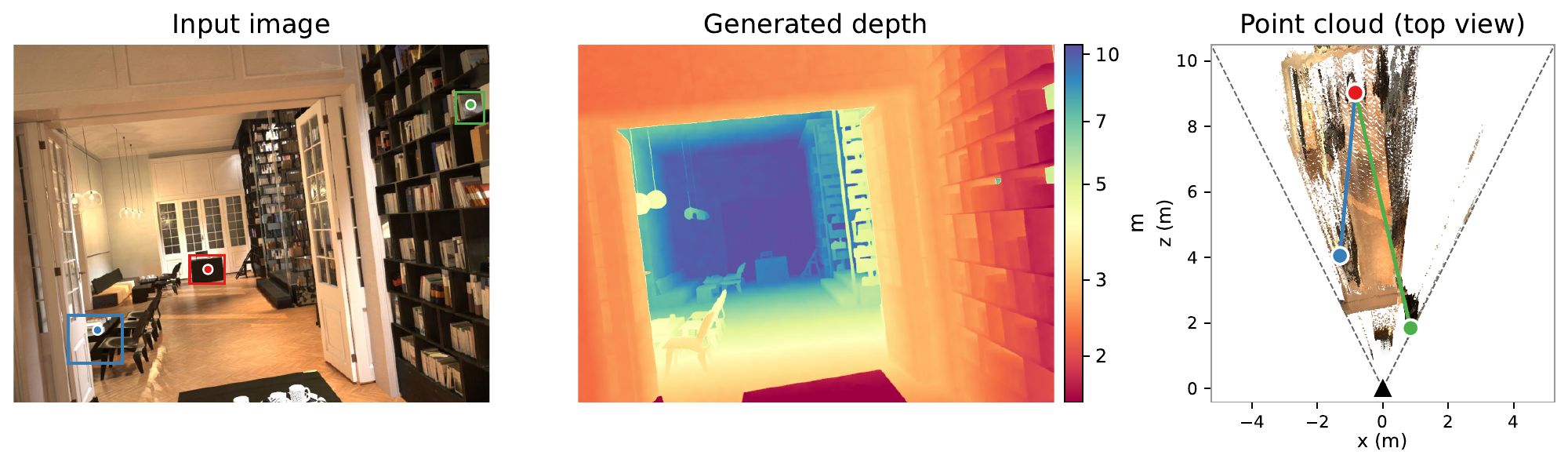

CV-Bench-3D · Distance
Wrong draft → Correct answerWhich is closer to the desk: the table or the books?
DRAFTBooks
GENERATE + MEASURE
Desk → table: 5.01 m · desk → books: 7.50 m
FINAL ANSWERTable ✓
Generation probability: 0.94 / 0.95. Final answers are correct under both option orders.

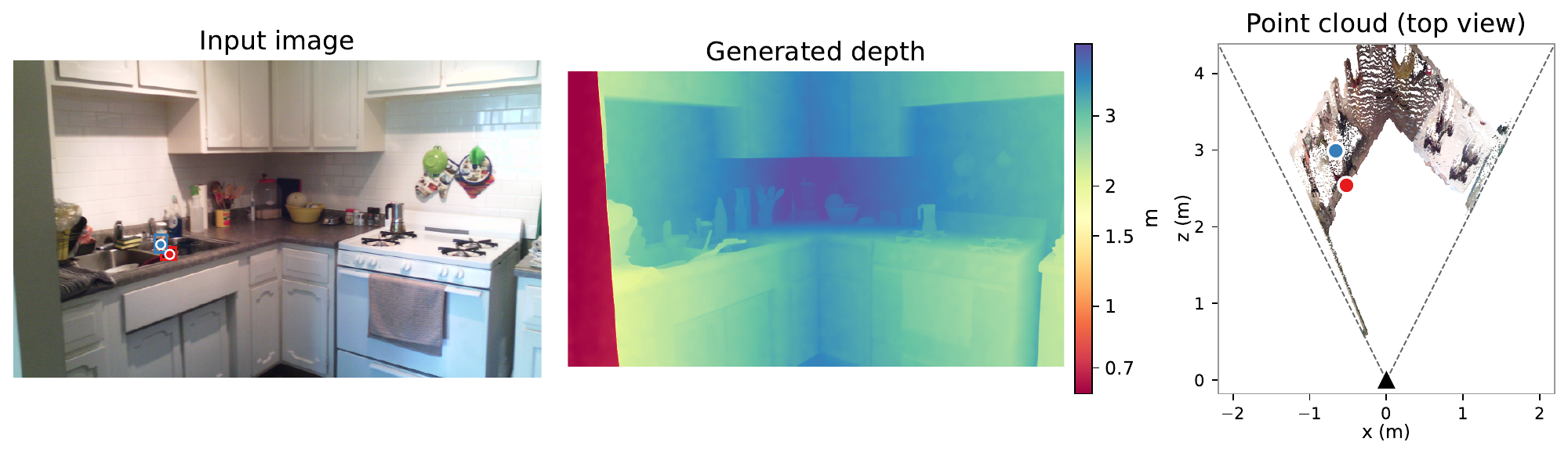

DA-2K · Depth
Wrong draft → Correct answerWhich point on the sink is closer to the camera?
DRAFTSecond point
GENERATE + MEASURE
First point: 2.54 m · second point: 2.99 m
FINAL ANSWERFirst point ✓
Generation probability: 0.98 / 0.93. Final answers are correct under both option orders.

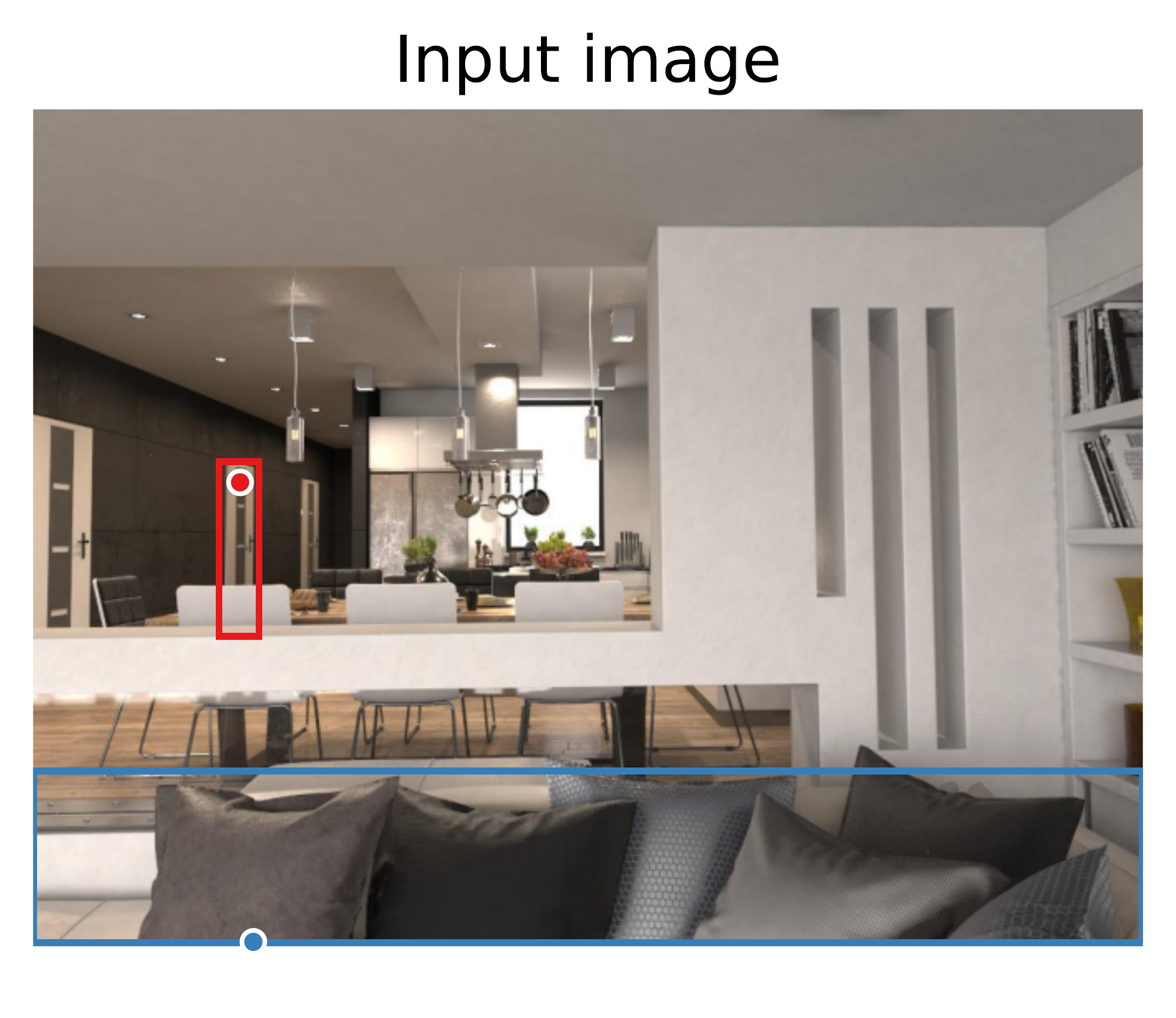

CV-Bench-3D
Door or pillow: which is closer to the camera?
Draft → Final: Pillow ✓
No depth generation. Both option orders are correct.
Generation probability: 0.02 / 0.05.
DA-2K
First point or second point: which is closer to the camera?
Draft → Final: First point ✓
No depth generation. Both option orders are correct.
Generation probability: 0.02 / 0.13.

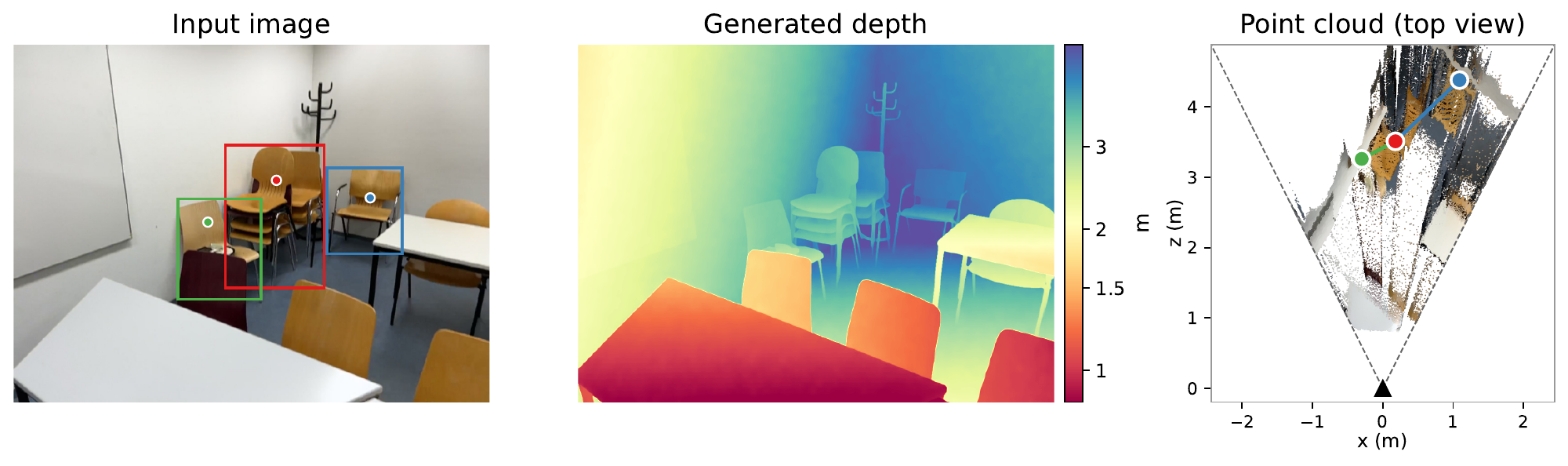

Failure case · 3DCueBench Distance
Correct draft → Wrong answerWhich is closer to the stacked chairs: the wooden armchair or the wooden chair?
DRAFT · CORRECTWooden armchair
GENERATED MEASUREMENTS
Armchair: 1.25 m · wooden chair: 0.63 m from the anchor
FINAL · INCORRECTWooden chair ✕
The policy follows an incorrect measured ordering and reverses a correct draft. Ground truth: wooden armchair. Both option orders are answered incorrectly.
Generation probability: 0.87 / 0.88. Relative gap: [0.25, 0.40).
01 / 07Every 2 seconds · click an example to pause
Source: paper, reasoning results and Qualitative Results appendix. Point clouds use the measurement tool’s approximate camera intrinsics when calibrated intrinsics are unavailable.
07 / CONTROLLED SPATIAL EVALUATION
3DCueBench
800 spatial questions. Balanced 2D cues. Four difficulty levels.
WHAT IS A SHORTCUT?
Using 2D image cues alone to answer 3D spatial questions.
2D cues are image-plane clues, such as relative position and pixel distance.
Example: assuming “lower in the image” means “closer to the camera.”
OUR OBSERVATION
High accuracy can come from the shortcut.
On CV-Bench-3D Depth, this rule alone answers 85.3% correctly.
OUR INSIGHT
To test 3D reasoning, make the shortcut fail as often as it works.
3DCueBench balances both cases across tasks and difficulty levels.
Audit: 600 CV-Bench-3D Depth questions; rule uses bounding-box bottoms. 3DCueBench balances selected cues within each task, source, and difficulty interval.

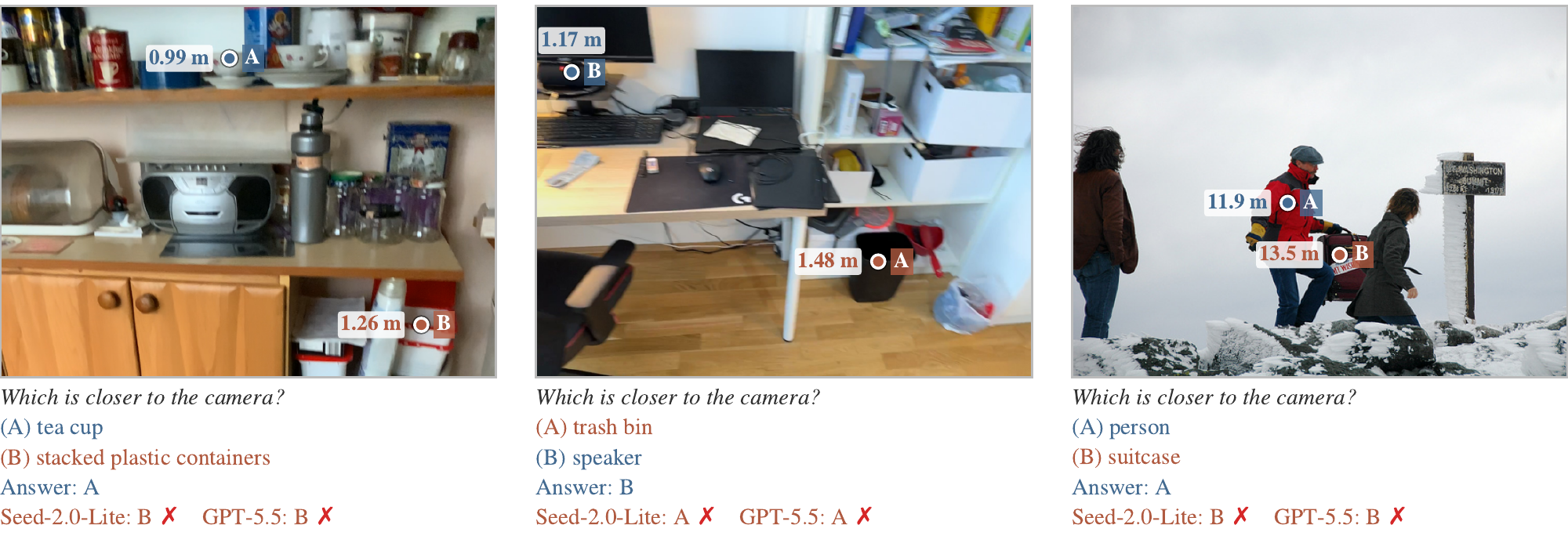

GPT-5.5 failure cases: image height is not camera depth
In these 3DCueBench examples, the higher target point is nearer to the camera. GPT-5.5 and Seed-2.0-Lite both select the farther target. Depth values are ground truth; annotations are added for readers and are not supplied to the models.
Accuracy drops when the 2D cue fails
GPT-5.5: 93.4% → 35.7% when the cue switches from consistent to conflicting.
| Model | Overall | Cue-consistent | Cue-conflicting | Agreement with 2D rule |
|---|---|---|---|---|
| GPT-5.5 | 64.6 | 93.4 | 35.7 | 78.8 |
| Seed-2.0-Lite | 64.5 | 92.0 | 37.0 | 77.5 |
GPT-5.5 version: gpt-5.5-2026-04-24. Twelve unparseable responses are excluded, so evaluated group sizes can differ from the balanced construction. The image-height examples above concern Depth; this table concerns Distance.
Benchmark construction
Compare two camera depths, or compare two 3D distances to an anchor.
[0.10, 0.16), [0.16, 0.25), [0.25, 0.40), [0.40, 1]. Each contains 100 questions per task.
50/50 selected cue agreement and conflict; equal indoor/outdoor representation. Ten source datasets.
Depth cues use vertical image relationships; Distance cues use image-plane proximity to the anchor. This controls the selected rules, not every possible shortcut. Text-only language-model probes score 48.9–50.4%; scene-disjoint boosted-tree probes reach 56.1% (Depth) and 53.5% (Distance).
Visualizing the 2D–3D discrepancy
Depth: kettle or chair?
The lower object looks closer in 2D. The generated 3D view puts the chair closer.
Distance: stool or basket?
The stool looks closer in the image. The generated 3D view puts the basket closer to the flower arrangement.
The videos illustrate geometry using generated-depth readouts. Benchmark labels and statistics above use the paper’s ground-truth protocol. Source: paper, Evaluation and 3DCueBench appendix.
